TM 77HI Prestige is one of the top quality entry door systems for houses or apartment buildings.

This solution allows for assembly of leafs in the same plane as the door frame (leaf profile invisible) or single-faced. Thanks to 3-chamber system of thermal insulation and modern thermal separators, this product is characterised by excellent thermal properties and lack of thermal stresses resulting from differences in temperatures. This system allows for lowering energy consumption, thus helping to reduce the heating costs. Panel door system solutions match the window system TM 77HI, so it is possible to create many constructions in various combinations.

ADVANTAGES OF THE SYSTEM

• excellent aesthetics of the system due to hidden hinges, the product is available in many options:
– with single – faced panel,
– with double – faced panel,
• possibility of choice between type of insulation or central gasket,
• quick and easy assembly,
• possibility of using panels with all possible designs, with decorative designs of stainless steel and with decorative cuts
• high thermal insulation properties,
• durable colour, easy to clean,
• great selection of colours – RAL palette, structural colours and wooden-like colours,
• structural depth is 77 mm, UCW ~0,8 – passive door,
• possibility of combination with other Yawal systems.

TECHNICAL PARAMETERS

  Water tightness class 7A acc. to PN-EN 12208
 Air permeability class 4 acc. to PN 12207
  Acoustic insulation
Rw = 33 dB acc. to PN-EN ISO 140-3
  Heat transfer coefficient
Uf = od 1,1 W/m2K acc. to PN-EN ISO 10077-2


SYSTEM CHARACTERISTICS

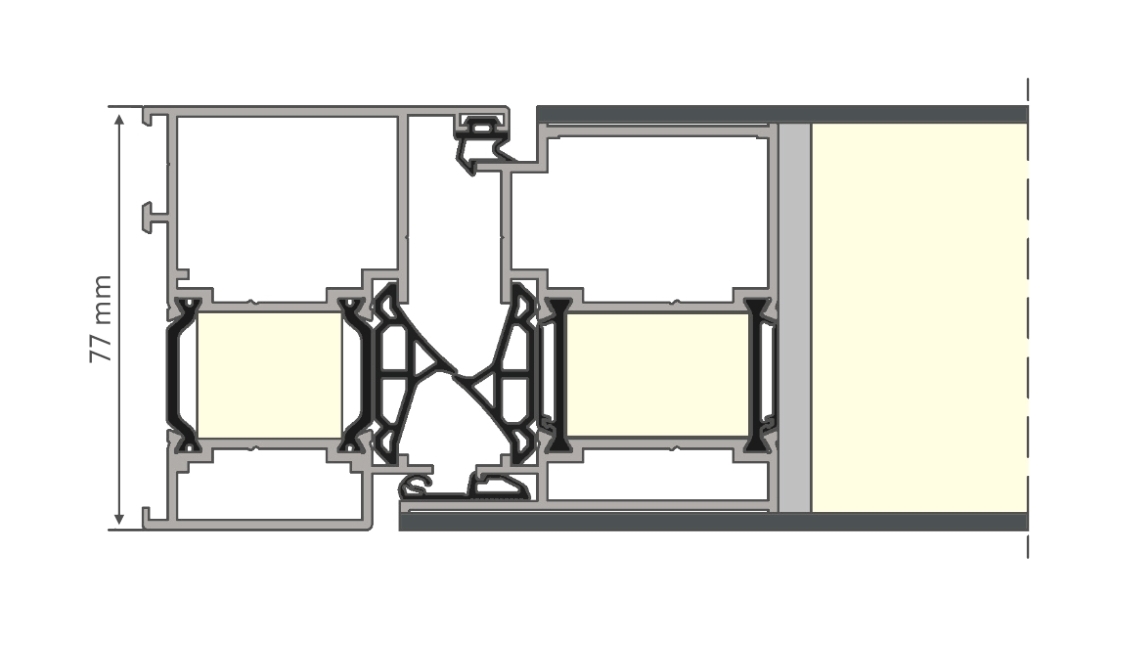

  Door structural depth  Frame profile
77 mm
 Sash profile
77 mm
  Panel thickness
30÷77 mm
